• IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 workweeks. The finished tank pickup window is also 2 workweeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

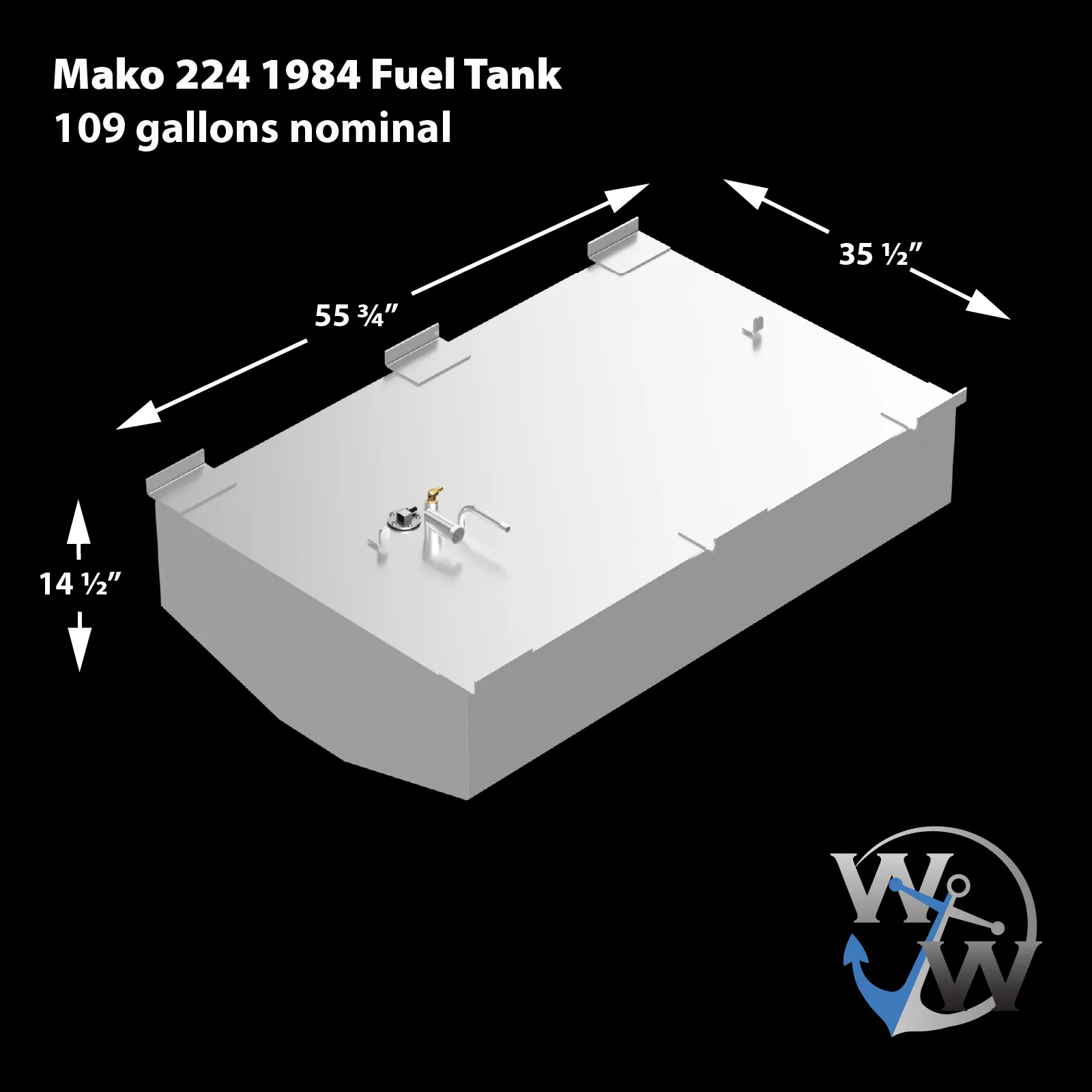

• 100% compatible with all Mako 224 -1984 model year- center console boats with 109-US gallon capacity belly fuel tanks. Overall dimensions: 55.875" x 35.5" x 14.25".

• .190 thickness Alcoa® 5052 H32 Series aluminum construction.

• Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

• Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

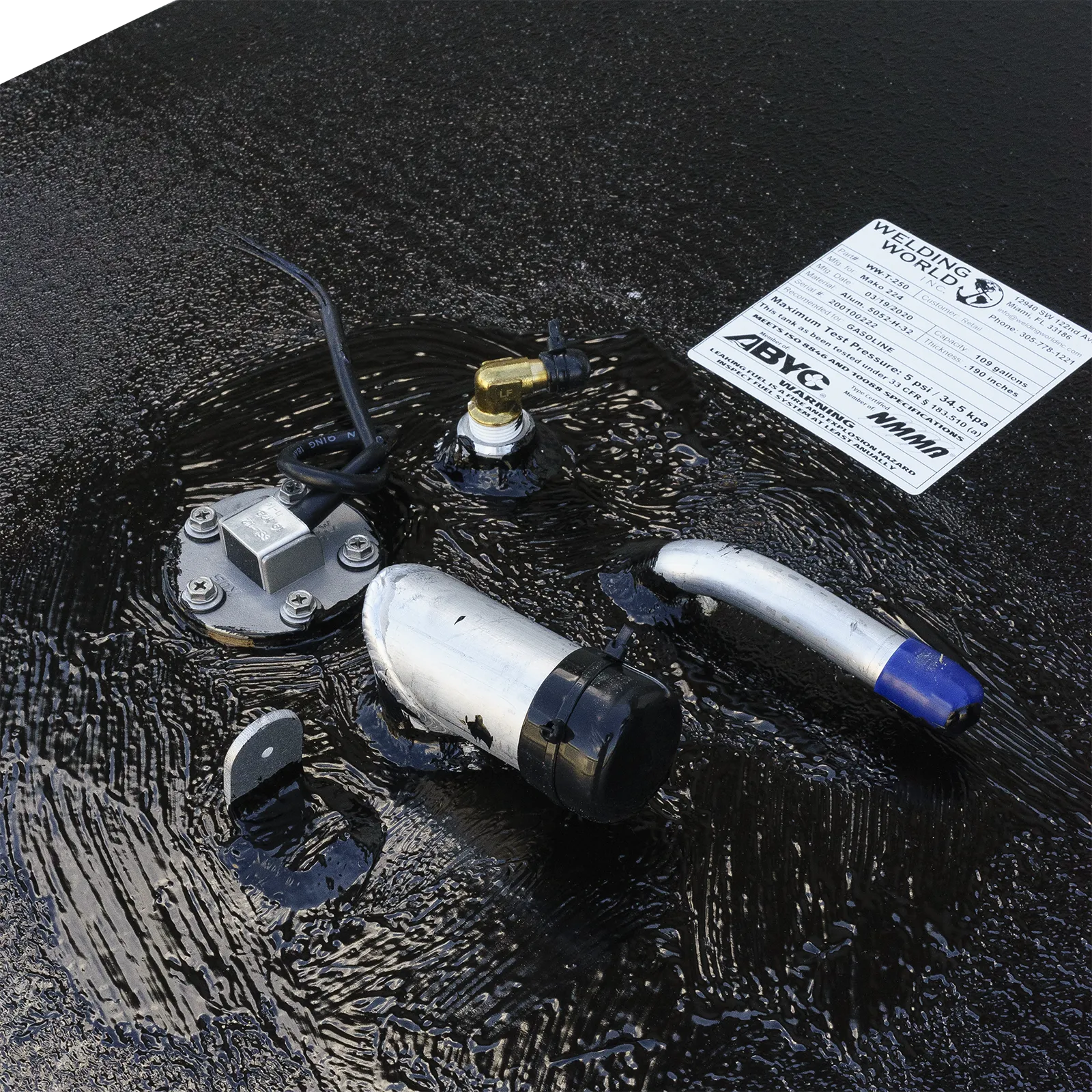

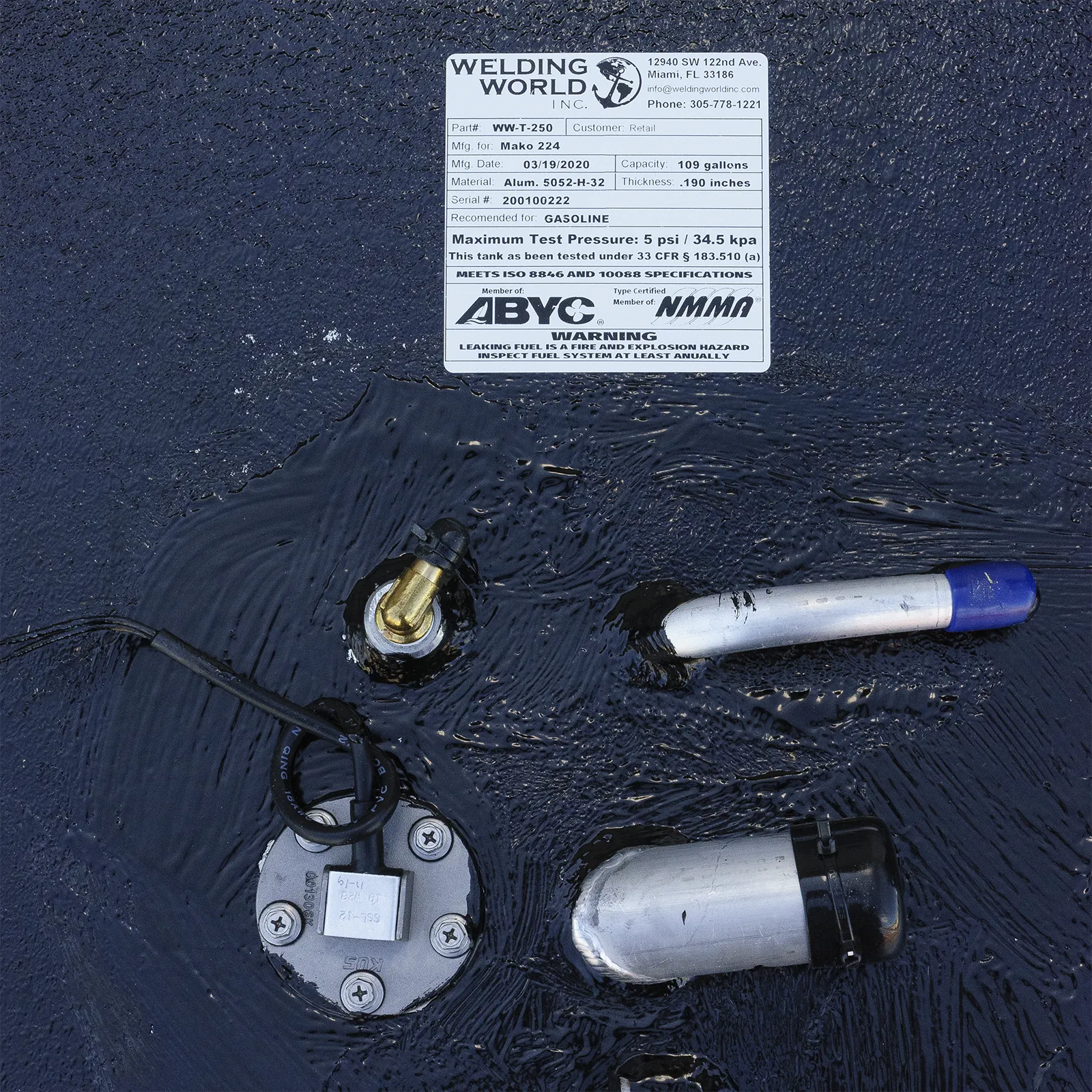

• KUS® (ex-WEMA USA) reed switch and NBR float fuel level sender.

NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 2 workweeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra cost shipping options for HI and AK. International shipping from US-based carriers is welcome but contact us first to coordinate details.
